Specifications

Coaxial Indicator Specifications

801 (Inch) – Premium Coaxial Indicator Specifications

  • Locating accuracy: To within .0002 in. of true center.
  • Graduation on Dial Face: .0005 in.
  • Length: 6 7/8 in.
  • Shank 3/8 dia. x 7/8 in. long
  • Weight 9 1/2 oz. net, 1 LB. 14 oz. shipping weight
  • Feeler ball 1/8 in. dia.
  • Measuring Range .250 axis offset
  • **Capacity Internal, 5/32 to 4 1/4 dia.- External, zero to 4 1/4 dia.
  • Speed It is recommended that operating speed not exceed 800 RPm approx.
  • Inital positioning: Within 7/16 dia. circle of true location.

*Capacity can be increased to 12″ diameter by use of accessory feelers

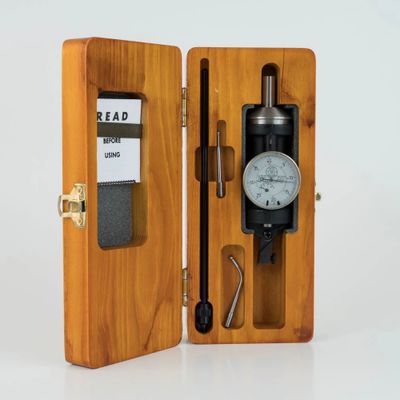

801 - Standard
coaxial-inidicator-801-metric-yellow

801 (Metric) – Premium Coaxial Indicator Specifications

  • Locating accuracy: To within .005 mm  of true center.
  • Graduation on Dial Face: .01 mm
  • Length: 6 7/8 in.
  • Shank 3/8 dia. x 7/8 in. long
  • Weight 9 1/2 oz. net, 1 LB. 14 oz. shipping weight
  • Feeler ball 1/8 in. dia.
  • Measuring Range .250 axis offset
  • *Capacity Internal, 5/32 to 4 1/4 dia.- External, zero to 4 1/4 dia.
  • Speed It is recommended that operating speed not exceed 800 RPm approx.
  • Inital positioning: Within 7/16 dia. circle of true location.

*Capacity can be increased to 12″ diameter by use of accessory feelers

801-E (Economy Coaxial Indicator) Specifications

  • Locating accuracy: To within .0010 in. of true center.
  • Graduation on Dial Face: .0010 in.
  • Length: 6 7/8 in.
  • Shank 3/8 dia. x 7/8 in. long
  • Weight 9 1/2 oz. net, 1 LB. 14 oz. shipping weight
  • Feeler ball 1/8 in. dia.
  • Measuring Range .250 axis offset
  • *Capacity Internal, 5/32 to 4 1/4 dia.- External, zero to 4 1/4 dia.
  • Speed It is recommended that operating speed not exceed 800 RPm approx.
  • Inital positioning: Within 7/16 dia. circle of true location.

*Capacity can be increased to 12″ diameter by use of accessory feelers

801-R (Refurbished) – Coaxial Indicator Specifications

  • Locating accuracy: To within .0002 in. of true center.
  • Graduation on Dial Face: .0005 in.
  • Length: 6 7/8 in.
  • Shank 3/8 dia. x 7/8 in. long
  • Weight 9 1/2 oz. net, 1 LB. 14 oz. shipping weight
  • Feeler ball 1/8 in. dia.
  • Measuring Range .250 axis offset
  • *Capacity Internal, 5/32 to 4 1/4 dia.- External, zero to 4 1/4 dia.
  • Speed It is recommended that operating speed not exceed 800 RPm approx.
  • Inital positioning: Within 7/16 dia. circle of true location.

*Capacity can be increased to 12″ diameter by use of accessory feelers

I am message box. Click edit button to change this text.

Blake CoAxial Centering Indicator

Dial Graduation Values for 801 (INCH)

Bore Diameter in Inches
Feeler Length 2″ Feeler Length 4″ Feeler length 6″
0
.00056 .00105 .00147
1
.00054 .00103 .00146
2
.00050 .00100 .00145
3
.00044 .00097 .00143
4
.00030 .00093 .00140
5
.00087 .00136
6
.00079 .00132
7
.00069 .00124
8
.00055 .00115
9
.00105
10
.00097
11
.00083
12
.00062
